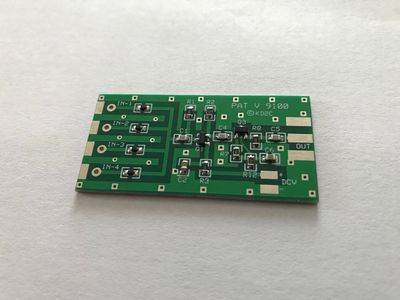

The PAT V 9100 combines the "4-1" and PAT V boards. It been designed to accommodate up to four RF inputs from a single radio and provide a single RF output. This eliminates the need to install four separate RF boards in your rig. This is the case primarily with the IC-9100 but the PAT V 9100 can be used in any rig that has multiple RF circuits requiring multiple PAT boards such as the TS-2000 , FT-991/991A and
(Recommended SDR's: SDRPlay RSP1A, RSPdx and RSPduo)
Impedance: 50 Ohms
Frequency Range: .5MHz – 1.5GHz
The PAT V 9100 Board Connection Kit includes:
4 - 15 in. – 30 AWG Input Wires
1 - 15 in. – RG-178 Output Cable
15 in. – Red & Black 26 AWG Power Connection Wires
1 – SMA, BNC, or RCA Female Panel Connector or SMA Pigtail (add $5) (PLEASE SPECIFY WHEN ORDERING)
1 – 1x2 Strip of Double Sided 3M Foam Tape
SMA-RG-316 are cables available. Please see the "Cables" page for details.
IMPORTANT: Installing the PAT V 9100 board is not for the novice or beginners. If you don’t feel comfortable doing it yourself, have it installed by someone who is.
Installation instructions are available for download below
